Stud link anchor chains are a type of heavy-duty chain commonly used for anchoring and mooring vessels. They have a central stud in each link that helps to prevent kinking, deformation, and fouling. These chains are known for their strength and are often preferred for large vessels and applications where significant loads are involved.
Fishing chains have three specifications: short link chian, middle link chain and long link chain. Different types of fishing chains have different features.
Studless Fishing Anchor Chain are 62.5% load verified at break, very durable and able to withstand extreme and harsh weather use, it is also corrosion-resistant, ideal for use in saltwater environments. There are Short Link, Mid Link and Long Link to choose from.
Stud link anchor chains are a type of heavy-duty chain commonly used for anchoring and mooring vessels. They have a central stud in each link that helps to prevent kinking, deformation, and fouling. These chains are known for their strength and are often preferred for large vessels and applications where significant loads are involved.
The dual shank anchor features two parallel shanks that work together to embed and hold in various seabed conditions. This design provides higher holding power than traditional anchors, especially in soft ground and mud, and is commonly used in aquaculture and swing moorings.
A Sand Anchor has is a conventional anchor with solid construction to withstand high load.It has high holding power and weight ratio and very suitable for seabed of sand and mix Soil.
Mooring connection plates are manufactured using alloy grade material and followed by full heat treatment process.The durability ensures that the plates can withstand exposure to saltwater, reducing maintenance needs and extending the lifespan of the aquaculture setup.

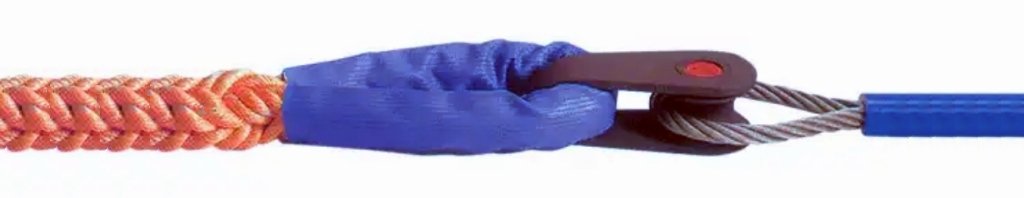

Rope K3 Thimble is used for aquaculture mooring, where the surface needs to be heat-treated to protect wire, fibre or synthetic ropes.
The 12.5mm Stud Link Anchor Chain is a heavy-duty marine chain primarily used in ship anchoring and mooring systems. Standard length (short link): typically supplied in 27.5-meter (15 fathom) lengths, connectable using Kenter shackles.
AM3 is a designation for a grade of stud-link anchor chain, specifically referring to a high-strength steel chain used for ship anchoring and mooring. These chains are designed for durability and reliability in demanding marine applications, often used on large vessels or in harsh environmental conditions.
Stud link anchor chain AM2 is a specific type of anchor chain widely used in marine applications. It's characterized by having a stud (a crossbar or bar) within each link, adding strength and preventing kinking or twisting. AM2 is a designation within the marine industry for a specific grade of this chain, indicating its strength and material properties.
Anchor Chain for marine farm mooring system, with diameter 16mm to 50mm, most used in European fish farming industry.
| Product Information: | |
| Application: | Professional Marine Mooring Connections |
| Material: | Special Stainless Steel |
| Specification: | 90T to 120T |
| Customization: | Available |
| Certification: | LR, ABS, DNV, BV, CCS, KR, RMRS, NK etc. |

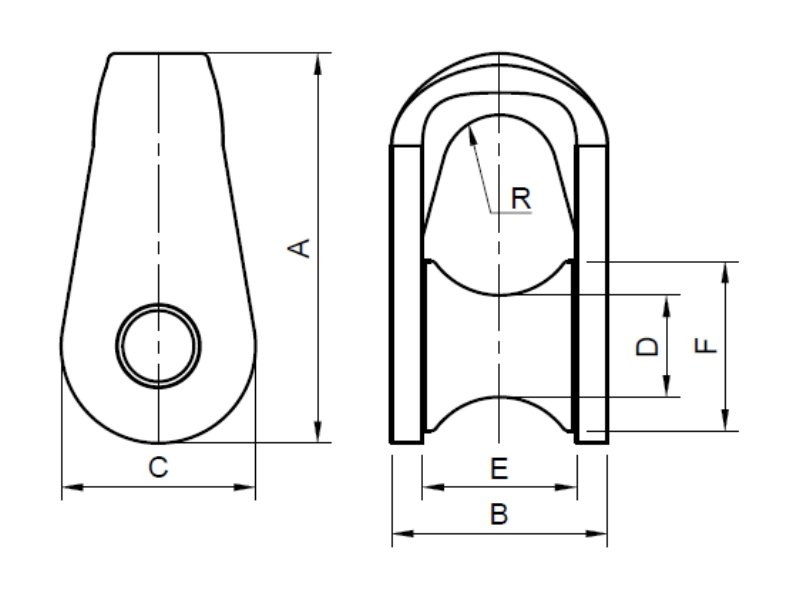

| Link 90T | Link 120T | Link 180T | Link 250T | Link 300 T |
| Tail 56-68 mm | Tail 72-80 mm | Tail 88-112 mm | Tail 88-112 mm | |
| A = 285 mm | A = 324 mm | A = 350 mm | A = 363 mm | A = 447 mm |
| B = 115 mm | B = 142 mm | B = 184 mm | B = 196 mm | B = 216 mm |
| C = 136 mm | C = 150 mm | C = 160 mm | C = 174 | C = 190 mm |
| D = 65 mm | D = 75 mm | D = 85 mm | D = 85mm | D = 110 mm |
| E = 75 mm | E = 90 mm | E = 120 mm | E = 120 mm | E = 146 mm |
| R = 22 mm | R = 28 mm | R = 30 mm | R = 35 mm | R = 36 mm |
| Breaking load:90 tonnes | Breaking load:120 tonnes | Breaking load:180 tonnes | Breaking load:250 tonnes | Breaking load: 300 tonnes |
| Proof load:30 tonnes | Proof load:40 tonnes | Proof load:50 tonnes | Proof load:60 tonnes | Safe working load: 100 tonnes |
| Weight:11.2 kg | Weight:16.9 kg | Weight:25 kg | Weight:29.1kg | Weight:52 kg |
