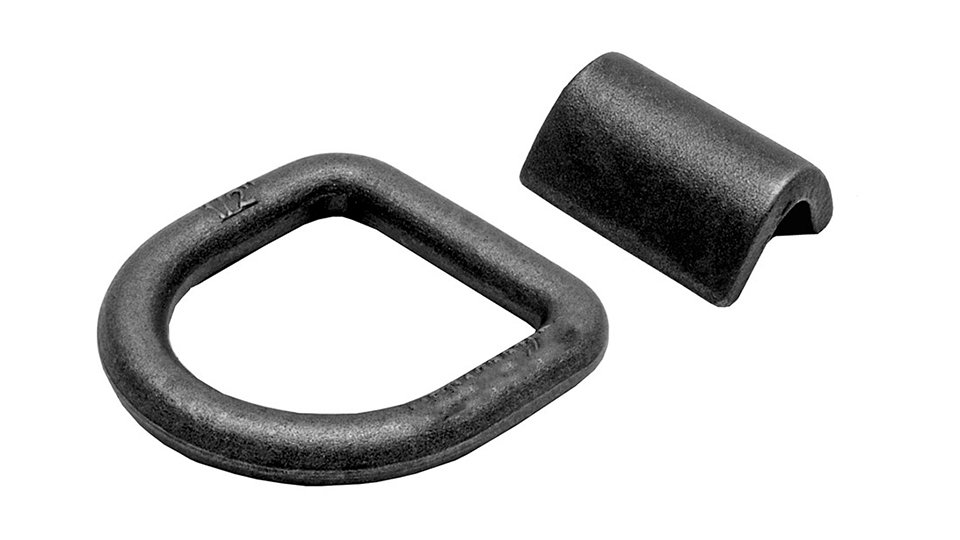

High-Strength Forged D-Shackles
Industrial applications heavily rely on high-strength forged D-shackles, especially for lifting and cargo securing as welded anchoring points. The analysis provides a comprehensive overview of material characteristics, welding methods, practical applications, and specific case studies.
I.Materials Choice and Manufacturing Features:
1.Alloy Steel: High-strength forged D-shackles are commonly manufactured from alloy steel, such as Grade 45, and undergo die-forging to enhance their tensile strength and toughness, which makes them suitable for handling heavy loads.
2.Surface Treatment: After welding, electro-galvanizing or powder coating can be used to improve resistance to rust and corrosion, especially in tough industrial settings.
3.Forging Process:High-temperature die-forging results in a compact metal grain structure, which enhances mechanical properties. For example, marine-grade D-shackles are capable of withstanding loads of up to 80 tons, fulfilling the requirements of heavy-duty lifting operations.
II. Welding and Anchor Design:
1.Welding Techniques and Applications: Automated pneumatic butt-welders, such as those with 75KVA power and 7V voltage, guarantee accurate and reliable weld quality.
After welding, the D-shackle firmly attaches to the equipment surface, creating a strong anchor point that can handle both dynamic and static loads.
2.Anchor Design Principles:Location: Weld anchors to load-bearing structures, keeping clear of thin-walled or high-stress zones.
3.Orientation: The opening of the shackle needs to be aligned with the force direction, reducing lateral stress on the welds as much as possible.
III. Industrial Applications
1. Lifting Operations:
Construction: Hoisting steel structures and prefabricated components using crane slings.
Heavy Machinery: Functioning as lifting lugs during equipment assembly and maintenance.
2. Cargo Securing:
Marine Transport:Container Lashing: Turnbuckles and lashing rods are utilized to secure hatch covers or deck cargo, preventing movement during rough seas.
Multipurpose Vessels: Used as securing points for heavy equipment in cargo holds.Logistics: Using straps to secure freight on trucks helps prevent tipping during transit.
3. Other Sectors:
Oil & Gas: Pipeline/equipment maintenance lifting.
Mining: Heavy machinery component handling.
IV. Case Studies: Marine Container Securing System
Example: An international shipping company attached 60-ton-capacity D-shackles to deck lashing points by welding, combining them with chains and turnbuckles to secure containers during severe weather conditions.
Advantage: Welded anchors prevent bolt loosening and are suitable for applications involving frequent loading and unloading.
High-Rise Construction: Steel Structure Lifting Operations
Example: A skyscraper construction project utilized Grade 15T forged D-shackles, which were welded to steel beams, allowing hydraulic hoists to lift trusses with millimeter-level precision.
V. Usage Guidelines Load Limits:
Always follow the Working Load Limit (WLL) to prevent deformation or failure.
Inspections: Inspect welds for cracks or rust and examine shackles for signs of wear or deformation on a regular basis.
Installation: Before welding, clean the surfaces and avoid applying force in multiple directions to prevent stress from concentrating.
VI. Future Trends:
1.Advanced Materials: Advanced alloys designed for extreme environments.
2.Smart Monitoring: Embedded sensors for monitoring stress in real time.
Conclusion:
High-strength forged D-shackles, with dependable welded anchoring and outstanding mechanical performance, have become essential components in sectors such as shipping, construction, and manufacturing, guaranteeing both operational safety and efficiency.
