What Is a Kenter Shackle?

I. Definition of a Kenter Shackle

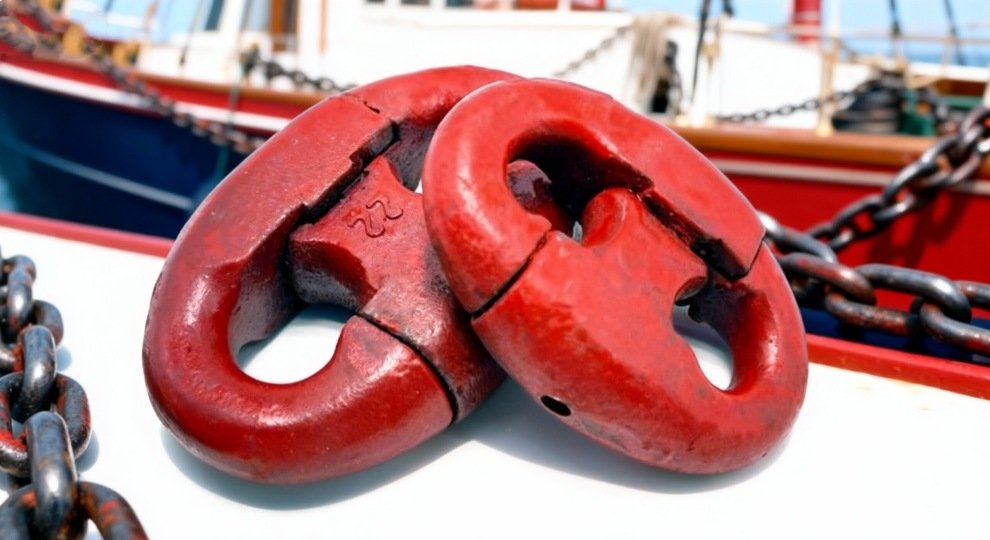

A Kenter Shackle is a detachable, bow-shaped chain link consisting of two interlocking half-rings, a crossbar, and a tapered pin. It is commonly used to connect two sections of anchor chain or to connect an anchor chain to the anchor body. Unlike ordinary chain links, Kenter Shackles can be quickly assembled and disassembled on-site, making it easier to change, replace, or repair anchor chain lengths.

II. Functions of a Kenter Shackle

1. Detachable: Anchor chain sections can be replaced at sea without gas cutting, improving maintenance efficiency.

2. Strength Maintenance: It effectively distributes loads, maintaining tensile strength comparable to ordinary chain links of the same diameter.

3. Quick Connection: Anchor chain splicing or disassembly can be quickly completed in emergency anchoring or abandonment.

4. Cost Savings: The chain diameters at both ends can be differentiated, reducing material waste.

III. Applications of Kenter Shackles

1. Anchor chain link connections on merchant ships, tankers, and container ships

2. Spare sections for maintenance of mooring chains on offshore wind power plants and platforms

3. Anchor rope extension or temporary anchoring on engineering vessels

4. Emergency release points for naval vessels requiring rapid anchor abandonment

For information on common chain diameters and load-bearing capacities, please visit SMEOCEAN's product specifications page and contact us for real-time quotes and classification society certificates.

IV. Manufacturing Process of Kenter Shackles

Generally, marine Kenter Shackles are made of high-quality alloy steel and forged. They require a high-temperature semi-ring at approximately 1100℃, followed by precision CNC machining of the meshing surfaces and tapered pin holes.

Kenter Shackles require heat treatment, through overall quenching and high-temperature tempering, achieving a hardness of 280–320 HB to ensure a balance between toughness and strength. Surface treatments can include black paint or hot-dip galvanizing. Before leaving the factory, the products must undergo salt spray testing and magnetic particle inspection, and the cost is finalized after obtaining certificates from classification societies (ABS, BV, CCS, DNV, etc.).

V. Kenter Shackle Installation Steps (On-site Version)

1. Inspection

- Verify that the certificate, specifications, and grade match the anchor chain; tolerance ≤ 0.1 mm.

- Ensure the half-ring, crossbar, and taper pin are free of burrs, cracks, or rust.

2. Cleaning

- Remove protective oil with diesel fuel or cleaning agent.

- Apply a small amount of anti-rust grease to the pin hole and meshing surface for easy disassembly.

3. Pre-installation

- Insert the two chain links to be connected into the Kenter half-ring.

- Close the half-ring, ensuring the meshing line is completely aligned.

4. Install the Crossbar

- Insert both ends of the crossbar into the half-ring grooves, ensuring "round groove aligns with round head, taper groove aligns with taper head."

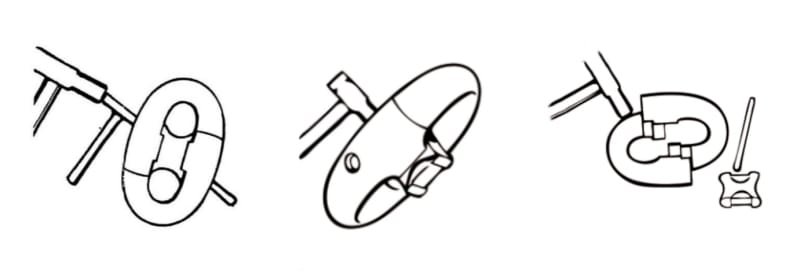

5. Pinning

- With the small end of the taper pin facing inward, hammer it in firmly in one go. The large end of the pin should be 1–2 mm below the shackle surface.

- Check that the gap between the crossbar and the half-ring is ≤ 0.2 mm; otherwise, re-tamp or replace the pin.

6. 7. Lead Seal

- Fill the taper pin hole with lead strips, then press it firmly with a chisel to prevent the pin from loosening and falling off.

8. Re-inspection

- Rotate the adjacent chain links to confirm that the Kenter Shackle can pass freely through the anchor winch sprocket.

- Mark with red paint, record the installation date and the inspector's signature.

9. Regular Maintenance

- Check the integrity of the lead seal every 6 months, and add lead promptly if loosening is found.

- Disassemble and perform a full flaw inspection every 2 years. Replace when wear exceeds 8% of the original size.

VI. Common Errors and Risks

1. No lead seal or lead seal falling off → Taper pin falls out, anchor chain separates and anchor is lost.

2. Half-ring misalignment → Local stress concentration, easy breakage.

3. Forced cold installation → Damage to the meshing surface, reducing fatigue life.

VII. Summary

The Kenter Shackle may seem like "just a large shackle," but it plays a crucial role as the "only detachable point" of the entire anchor chain. Correct selection, proper installation, and regular inspection are essential to ensuring the anchor chain remains the last line of defense against storms and high waves. Remember: a loose seal means a compromised anchor chain; one mistake can ruin the entire vessel.
