AM3 is a designation for a grade of stud-link anchor chain, specifically referring to a high-strength steel chain used for ship anchoring and mooring. These chains are designed for durability and reliability in demanding marine applications, often used on large vessels or in harsh environmental conditions.
Sinostar Marine is a manufacturer of AM2/AM3 stud link anchor chain, among which the maximum diameter of AM3 bolted anchor chain can be 132MM. It can provide LR, DNV,CCS,ABS,BV and other classification society certifications for anchor chains used for ocean and ships.

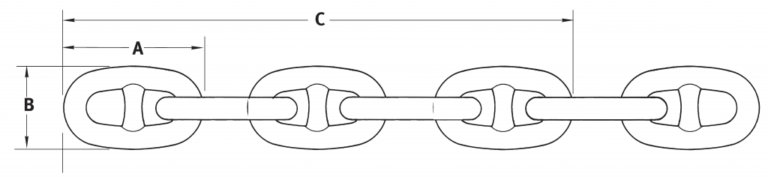

Drawings of AM3 Stud Link Anchor Chain:


Specification of AM3 Stud Link Anchor Chain:
Nominal | AM2 | AM3 | weight (kg/m) |
Dia.(mm) | MBL | PL | MBL | PL | (kg/m) |
16 | 150 | 107 | 216 | 150 | 5.61 |
17.5 | 179 | 127 | 256 | 179 | 6.71 |
19 | 211 | 150 | 301 | 211 | 7.91 |
20.5 | 244 | 175 | 349 | 244 | 9.2 |
22 | 280 | 200 | 401 | 280 | 10.6 |
24 | 332 | 237 | 476 | 332 | 12.61 |
26 | 389 | 278 | 556 | 389 | 14.8 |
28 | 449 | 321 | 642 | 449 | 17.17 |
30 | 514 | 368 | 735 | 514 | 19.71 |
32 | 583 | 417 | 833 | 583 | 22.43 |
34 | 655 | 468 | 937 | 655 | 25.32 |
36 | 732 | 523 | 1050 | 732 | 28.38 |
38 | 812 | 581 | 1160 | 812 | 31.62 |
40 | 895 | 640 | 1280 | 895 | 35.04 |
42 | 981 | 703 | 1400 | 981 | 38.63 |
44 | 1080 | 769 | 1540 | 1080 | 42.4 |
46 | 1170 | 837 | 1680 | 1170 | 46.34 |
48 | 1270 | 908 | 1810 | 1270 | 50.46 |
50 | 1370 | 981 | 1960 | 1370 | 54.75 |
52 | 1480 | 1060 | 2110 | 1480 | 59.22 |
54 | 1590 | 1140 | 2270 | 1590 | 63.86 |
56 | 1710 | 1220 | 2430 | 1710 | 68.68 |
58 | 1810 | 1290 | 2600 | 1810 | 73.67 |
60 | 1940 | 1380 | 2770 | 1940 | 78.84 |
62 | 2060 | 1470 | 2940 | 2060 | 84.18 |
64 | 2190 | 1560 | 3130 | 2190 | 89.7 |
66 | 2310 | 1660 | 3300 | 2310 | 95.4 |
68 | 1450 | 1750 | 3500 | 2450 | 101.3 |
70 | 2580 | 1840 | 3690 | 2580 | 107.3 |
73 | 2790 | 1990 | 3990 | 2790 | 116.71 |
76 | 3010 | 2150 | 4300 | 3010 | 126.5 |
78 | 3160 | 2260 | 4500 | 3160 | 133.2 |
81 | 3380 | 2410 | 4820 | 3380 | 143.69 |
84 | 3610 | 2580 | 5160 | 3610 | 154.53 |
87 | 3850 | 2750 | 5500 | 3850 | 165.76 |
90 | 4090 | 2920 | 5840 | 4090 | 177.39 |
92 | 4260 | 3040 | 6080 | 4260 | 185.36 |
95 | 4510 | 3230 | 6440 | 4510 | 197.56 |
97 | 4680 | 3340 | 6690 | 4680 | 206.06 |
100 | 4940 | 3530 | 7060 | 4940 | 219 |
102 | 5120 | 3660 | 7320 | 5120 | 227.85 |
105 | 5390 | 3850 | 7700 | 5390 | 241.45 |
107 | 5570 | 3980 | 7960 | 5570 | 250.73 |
111 | 5940 | 4250 | 8480 | 5940 | 269.83 |
114 | 6230 | 4440 | 8890 | 6230 | 284.61 |
117 | 6510 | 4650 | 9300 | 6510 | 299.79 |
120 | 6810 | 4850 | 9720 | 6810 | 315.86 |
122 | 7000 | 5000 | 9990 | 7000 | 325.96 |
124 | 7200 | 5140 | 10280 | 7200 | 336.73 |
127 | 7490 | 5350 | 10710 | 7490 | 353.23 |
130 | 7800 | 5570 | 11140 | 7800 | 370.11 |
132 | 8000 | 5720 | 11420 | 8000 | 381.59 |
