| Product Features: | |
| Application: | Forelock Shackle is One Type of Mooring Straight Shackles. |
| Material: | Alloy Steel CM490/CM690 |
| Holding Power: | At Least 40 Times the Self Weight |
| Specification: | 22MM to 40MM |
| Surface: | Hot Dip Galvanizing |
| Certification: | LR, ABS, BV, DNV, CCS, KR, NK, RMRS,etc |

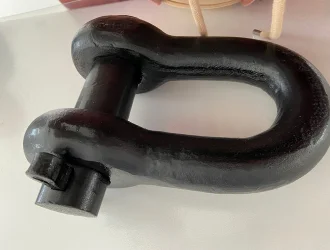

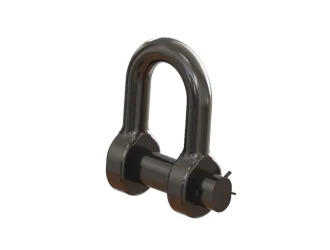

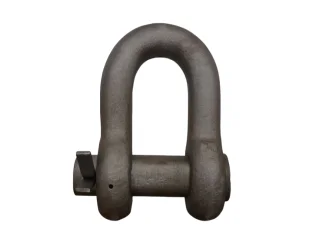

A forelock mooring shackle is a specialized type of shackle, commonly used in marine applications, particularly for connecting anchor chains or mooring lines. It's characterized by a unique locking mechanism, a forelock, that secures the shackle's pin, preventing accidental disconnections. This design is crucial in environments where frequent maintenance or inspection is difficult or impractical.

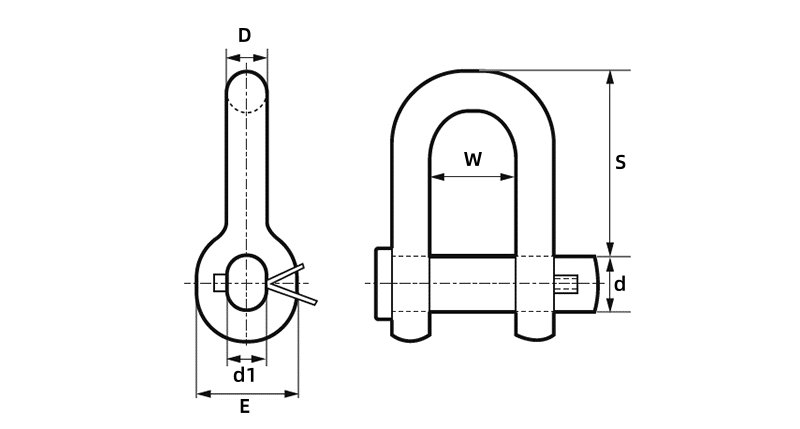

| Nominal Dia. | D | d | d1 | S | E | W | Proof Load | Break Load | Weight |
| Anchor Chain (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (KN) | (KN) | (kg) |
| 22 | 31 | 39 | 31 | 104 | 68 | 53 | 200 | 280 | 4.4 |
| 24 | 34 | 43 | 34 | 114 | 74 | 57 | 237 | 332 | 5.72 |
| 26 | 37 | 46 | 37 | 123 | 81 | 61 | 278 | 389 | 7.48 |
| 28 | 39 | 51 | 39 | 132 | 87 | 68 | 321 | 449 | 9.24 |
| 30 | 42 | 54 | 42 | 142 | 93 | 72 | 368 | 514 | 11 |
| 32 | 45 | 57 | 45 | 151 | 99 | 76 | 417 | 583 | 12.87 |
| 34 | 48 | 62 | 48 | 160 | 105 | 80 | 468 | 655 | 15.73 |
| 36 | 50 | 65 | 50 | 170 | 112 | 87 | 523 | 732 | 18.7 |
| 38 | 53 | 69 | 53 | 180 | 118 | 92 | 581 | 812 | 21.89 |
| 40 | 56 | 72 | 56 | 189 | 124 | 96 | 640 | 895 | 25.3 |
