Fishing Chains
Fishing chains have three specifications: short link chian, middle link chain and long link chain. Different types of fishing chains have different features.
Products
hot-sale products
-
-
Stud Link Anchor Chain Fish Chain
Stud link anchor chains are a type of heavy-duty chain commonly used for anchoring and mooring vessels. They have a central stud in each link that helps to prevent kinking, deformation, and fouling. These chains are known for their strength and are often preferred for large vessels and applications where significant loads are involved.
-
Dual Shank Anchor
The dual shank anchor features two parallel shanks that work together to embed and hold in various seabed conditions. This design provides higher holding power than traditional anchors, especially in soft ground and mud, and is commonly used in aquaculture and swing moorings.
-
High Strength aquaculture Mooring Shackle
Mooring shackles are manufactured with alloy steel by following ISO9001 Quality Control System. With our years know-how on forging, heat treatment and hot dip galvanized, it is ensured the mooring shackle avoid any Hydrogen Embrittle-ment and offer a longer fatigue life of safe performance compared to EN13889 requirement and safety.
-
Mooring Plate for Aquaculture
Mooring connection plates are manufactured using alloy grade material and followed by full heat treatment process.The durability ensures that the plates can withstand exposure to saltwater, reducing maintenance needs and extending the lifespan of the aquaculture setup.
-
AM3 Stud Link Anchor Chain
Sinostar Marine is a manufacturer of AM2/AM3 stud link anchor chains.Can provide LR, DNV, CCS, ABS, BV and other classification society certification.
-
AM2 Stud Link Anchor Chain
Stud link anchor chain AM2 is a specific type of anchor chain widely used in marine applications. It's characterized by having a stud (a crossbar or bar) within each link, adding strength and preventing kinking or twisting. AM2 is a designation within the marine industry for a specific grade of this chain, indicating its strength and material properties.
-
HDG Studless Anchor Chian
Anchor Chain for marine farm mooring system, with diameter 16mm to 50mm, most used in European fish farming industry.
-
Anchor Shackle Type D End Shackle
An Anchor Shackle Type D End Shackle is a specific type of shackle used in marine applications, particularly for connecting anchor chains. It's a D-shaped fitting with a removable pin, designed to safely connect the anchor's standard shackle to the chain or to a rope with a thimble.
-
AC-14 HHP Casting Steel Stockless Anchor
AC-14 anchor is a stockless HHP anchor with a wide anchor crown, thick and long flukes, and longitudinal ribs.
-
AC-14 SB HHP Casting Anchor
The AC-14 SB HHP Casting Anchor is a high-holding-power anchor, specifically designed for marine applications. It's a stockless anchor with a design that provides excellent weight-to-performance ratios and can be used in various seabed conditions.
-
Spek Anchor Stockless Anchor
A ship Spek anchor, also known as a stockless anchor, is a common type of anchor used in commercial shipping and cruise vessels. It is designed with a compact, stockless design for easy handling and deployment, especially in shallow waters, and is known for its good holding power.
A39 Swivel Head Anchor Fairlead
| Attributes: | |
| Material: | Cast Steel |
| Rotation Angle: | Type A39 360 Rotation Double Sheave Swivel Head |
| Wire Rope Dia. | 25MM to 64MM |
| Surface: | Hot Dip Galvanizing，Powder Coated |
| Sheave Dia. | 254MM to 762MM |
| Weight: | 367Kg to 4370Kg |
| Certification: | LR, ABS, DNV, BV, CCS, KR, RMRS, NK etc. |

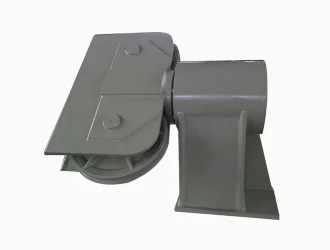

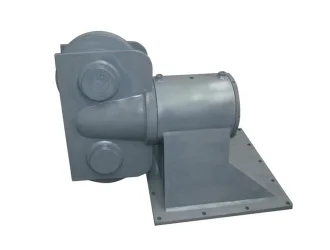

A39 Swivel Head Anchor Fairlead
The rotating head fairlead manufactured is a heavy-duty balanced anchor fairlead installed on the ship deck.
The swivel head fairlead is the heavy-duty balanced anchor fairlead and is installed on the deck of ships. It is suitable for use in most deck-mounted or flange-mounted marine-duty applications, which can be manufactured with welded foundation or bolted foundation. At the beginning and end of the fairlead, there are the same size front panel and back panel.
The surface of the opening is smooth to avoid the abrasion of anchor chains. With the compact structure and reasonable opening, the swivel fairlead is applicable to not only ordinary ship towing or mooring but also to ships sailing in the canal waterway.
Sinostar Marine provides high-quality swivel head fairleads with reliable prices and fast delivery.
Features:
● Designed for breaking strength of wire with 90° wrap on sheave and +/- 90° rotation of swivel head;
● Sealed lubricated tapered roller bearings;
● Hardened rope grooves for longer life.
Drawings of A39 Swivel Head Anchor Fairlead:
Specification of A39 Swivel Head Anchor Fairlead:
| Wire Rope Dia. | Sheave Dia. | Dimensions (mm) | Weight | |||||
| (mm) | (mm) | A | B | C | T | G | H | (kg) |
| 25 | 254 | 559 | 356 | 651 | 20 | 90 | 292 | 367 |
| 32 | 305 | 711 | 508 | 862 | 30 | 100 | 343 | 612 |
| 38 | 406 | 780 | 782 | 1231 | 30 | 150 | 489 | 720 |
| 44 | 508 | 1067 | 914 | 1503 | 50 | 190 | 546 | 1700 |
| 50 | 610 | 1219 | 1067 | 1775 | 50 | 220 | 648 | 2108 |
| 64 | 762 | 1370 | 1550 | 2400 | 50 | 300 | 800 | 4370 |
| 44 | 508 | 1064 | 914 | 1467 | 40 | 546 | 150 | 1520 |
| 50 | 610 | 1219 | 1067 | 1763 | 40 | 648 | 186 | 2600 |
| 64 | 762 | 1372 | 1219 | 2045 | 50 | 800 | 230 | 4000 |
| 76 | 938 | 1800 | 1500 | 2634 | 50 | 950 | 300 | 7200 |
| 82 | 1020 | 1800 | 2000 | 3186 | 50 | 1100 | 320 | 10800 |
