Stud link anchor chains are a type of heavy-duty chain commonly used for anchoring and mooring vessels. They have a central stud in each link that helps to prevent kinking, deformation, and fouling. These chains are known for their strength and are often preferred for large vessels and applications where significant loads are involved.
The dual shank anchor features two parallel shanks that work together to embed and hold in various seabed conditions. This design provides higher holding power than traditional anchors, especially in soft ground and mud, and is commonly used in aquaculture and swing moorings.
Mooring shackles are manufactured with alloy steel by following ISO9001 Quality Control System. With our years know-how on forging, heat treatment and hot dip galvanized, it is ensured the mooring shackle avoid any Hydrogen Embrittle-ment and offer a longer fatigue life of safe performance compared to EN13889 requirement and safety.
Mooring connection plates are manufactured using alloy grade material and followed by full heat treatment process.The durability ensures that the plates can withstand exposure to saltwater, reducing maintenance needs and extending the lifespan of the aquaculture setup.
Sinostar Marine is a manufacturer of AM2/AM3 stud link anchor chains.Can provide LR, DNV, CCS, ABS, BV and other classification society certification.
| Product Features: | |
| Application: | Aquaculture, Fish farm mooring |
| Material: | Alloy steel Q355 |
| Process: | Welding or Screw |
| Specification: | 500kgs to 2500 kgs |
| Surface: | Hot dip galvanizing |

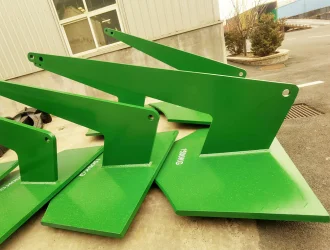

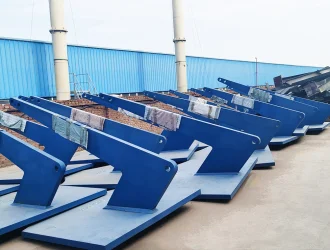

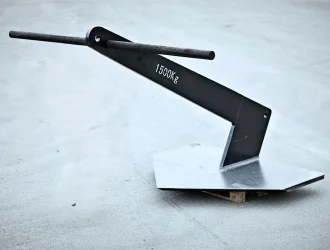

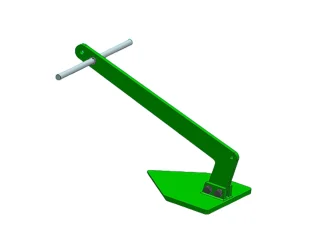

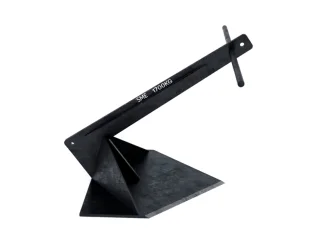

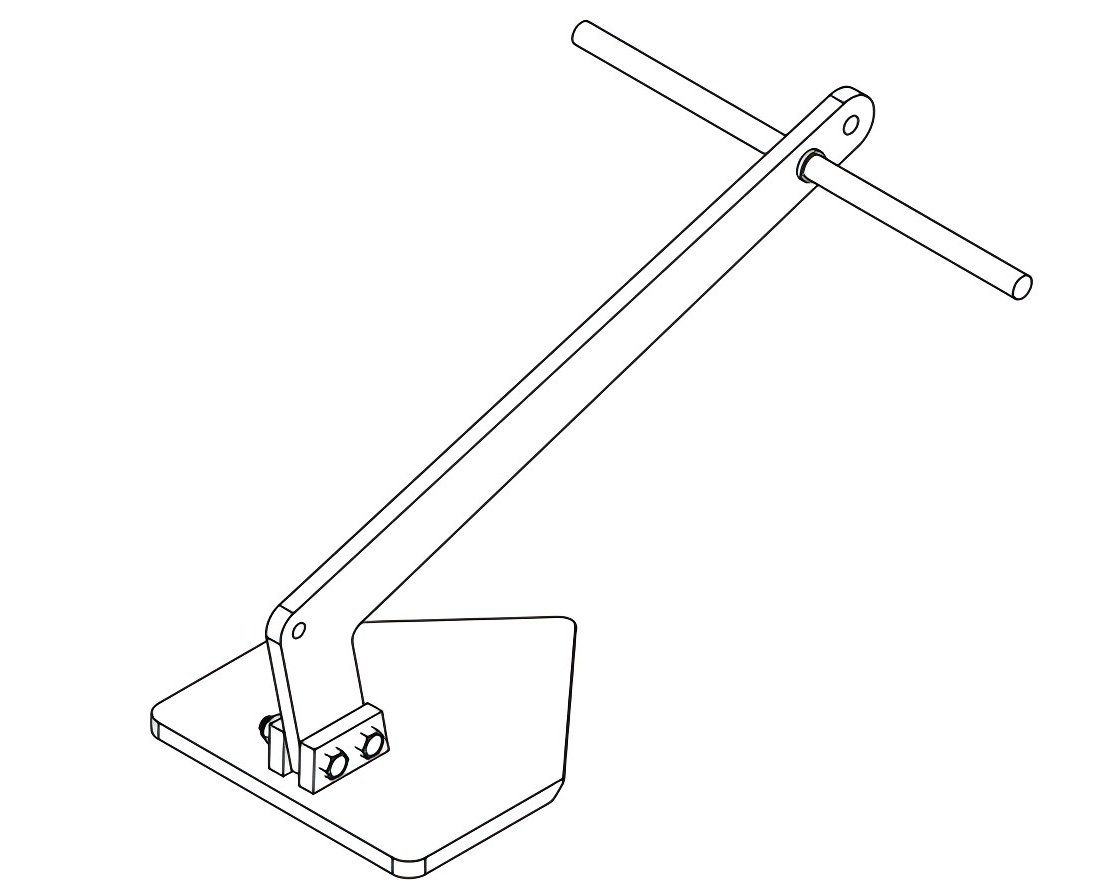

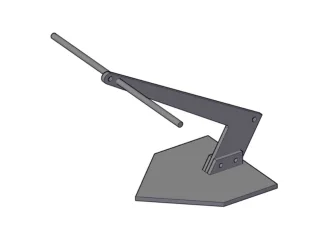

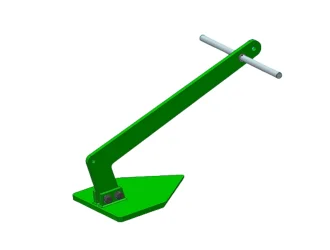

The Sand Anchor is a traditional anchor that is essential for every boater who wants a safe and reliable anchoring system in soft seabeds such as sand, silt and gravel.
It has a strong structure and is able to withstand high loads. It has a high holding power to weight ratio, which is very suitable for sandy and mixed soil seabeds. It provides a strong holding power by burying itself in the water and forming a fixed point to fix the boat.
Sandin anchors are often used in the marine aquaculture industry， It can be delivered in welding status as well as bolted type with consideration of saving space in container transport， provide a better ratio between cost and performance.
| Weight（kg） | Holding power（Tons） | Break load （Tons） | Proof load ( N ) |
| 500 | 10 | 30 | 15 |
| 750 | 15 | 45 | 22.5 |
| 1000 | 20 | 60 | 30 |
| 1500 | 30 | 90 | 45 |
| 2000 | 40 | 120 | 60 |
| 2500 | 50 | 150 | 75 |
