G30 Proof Coil Chain ASTM80
| Product Features: | |
| Application: | Transmission chain, Drag chain, Conveyor chain,Link chain,Not to be used in overhead lifting |
| Material: | Alloy steel |
| Specification: | 3/16” to 3/4” |
| Surface: | Hot Dip Galvanizing |
| Standard: | DIN5685A/C,DIN764,DIN763,DIN766,DIN5686 Link chain |

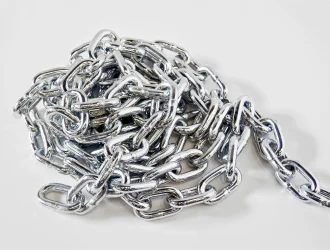

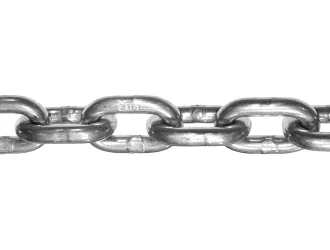

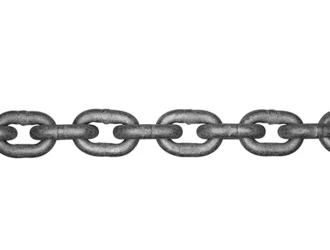

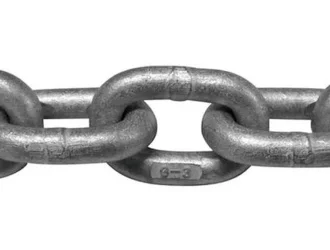

G30 Proof Coil Chain ASTM80
G30 Galvanized Proof Coil Chain, also known as ASTM80(G30), is a general-purpose, low carbon steel chain with a galvanized finish. It's designed for light-duty applications and is known for its resistance to wear and tear, making it suitable for various tasks. The galvanization provides a protective coating against rust and corrosion, enhancing its durability.
Specification of G30 Proof Coil Chain ASTM80:
| Nominal size D | Material diameter | Working load limit | Proof test (Min) | Breaking force (Min) | Inside length A | Inside width B | |||||||
| mm | in | mm | in | kg | lbs | kn | lbs | kn | lbs | mm | in | mm | in |
| 4 | 1/8" | 4 | 0.156 | 180 | 400 | 3.6 | 800 | 7.2 | 1600 | 23.9 | 0.94 | 6.4 | 0.25 |
| 5.5 | 3/16" | 5.5 | 0.217 | 365 | 800 | 7.2 | 1600 | 14.4 | 3200 | 24.8 | 0.98 | 7.7 | 0.3 |
| 7 | 1/4" | 7 | 0.276 | 580 | 1300 | 11.6 | 2600 | 23.2 | 5200 | 31.5 | 1.24 | 9.8 | 0.38 |
| 8 | 5/16" | 8.4 | 0.331 | 860 | 1900 | 16.9 | 3800 | 33.8 | 7600 | 32.8 | 1.29 | 11.2 | 0.44 |
| 10 | 3/8" | 10 | 0.394 | 1200 | 2650 | 23.5 | 5300 | 47.2 | 10600 | 35 | 1.38 | 14 | 0.55 |
| 11.9 | 7/16" | 11.9 | 0.488 | 1680 | 3700 | 32.9 | 7400 | 65.8 | 14800 | 41.5 | 1.64 | 16.6 | 0.65 |
| 13 | 1/2" | 13 | 0.512 | 2030 | 4500 | 40 | 9000 | 80 | 18000 | 45.5 | 1.79 | 18.2 | 0.72 |
| 16 | 5/8" | 16 | 0.63 | 3130 | 6900 | 61.3 | 13800 | 122.6 | 27600 | 56 | 2.2 | 20 | 0.79 |
| 20 | 3/4" | 20 | 0.787 | 4800 | 10600 | 94.3 | 21200 | 188.6 | 42400 | 70 | 2.76 | 25 | 0.98 |
| 22 | 7/8" | 22 | 0.866 | 5810 | 12800 | 114.1 | 25600 | 228.2 | 51200 | 77 | 3.03 | 27.5 | 1.08 |
| 26 | 1" | 26 | 1.02 | 8140 | 17900 | 159.1 | 35800 | 318.2 | 71600 | 90.9 | 3.58 | 31.7 | 1.25 |
