G70 Transport Binder Chain With Hooks
| Product Features: | |
| Application: | Rigging lashing heavy cargo to your truck or flatbed |
| Material: | G70 stainless steel |
| Specification: | 1/4"-1/2" |
| Surface: | Hot dip galvanizing |
| Standard: | NACM1996/2010,ISO9001 |

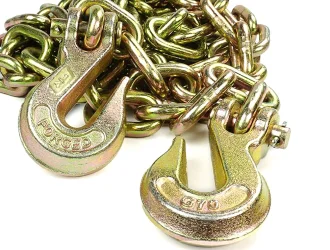

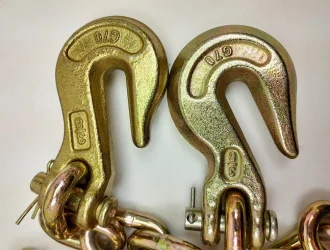

G70 Transport Binder Chain With Hooks
Grade 70(G70) chain was specifically designed for the transportation industry. G70 Chain typically has a 20% higher working load limit than High Test Chain or Grade 43 Chain. G70 chains are also referred to as Transport Chain, System 7, or Spectrum 7.
G70 Chain is NOT approved for overhead lifting.G70 chain is probably the most common drag chain grade in the flatbed transport industry.G70 chain is usually coated with yellow chrome, and its load rating is about 20% higher than Grade 43, making it the strongest carbon steel chain available!
SINOSTAR has been selling G70 conveyor belt grab chain for a long time, and our chains will be stamped with Grade 70.
Specification of G70 Transport Binder Chain With Hooks:
| Size | Weight | WLL | MBL | PC/DRU |
| （in） | (kg) | (Lbs) | (Lbs) | (Lm) |
| 1/4″ x 14 FT | 4 | 3150 | 12600 | 50 |
| 1/4″ x 16 FT | 5 | 3150 | 12600 | 40 |
| 5/16″ x 14 FT | 7 | 4700 | 18800 | 35 |
| 5/16″ x 16 FT | 8 | 4700 | 18800 | 30 |
| 5/16″ x 18 FT | 9 | 4700 | 18800 | 30 |
| 5/16″ x 20 FT | 10 | 4700 | 18800 | 25 |
| 5/16″ x 25 FT | 12 | 4700 | 18800 | 20 |
| 5/16″ x 30 FT | 14.5 | 4700 | 26400 | 20 |
| 3/8″ x 14 FT | 10 | 6600 | 26400 | 25 |
| 3/8″ x 16 FT | 11.5 | 6600 | 26400 | 20 |
| 3/8″ x 20 FT | 14.5 | 6600 | 26400 | 20 |
| 3/8″ x 25 FT | 18 | 6600 | 26400 | 15 |
| 1/2″ x 20 FT | 24.5 | 11300 | 45200 | 10 |
