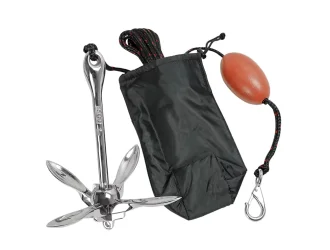

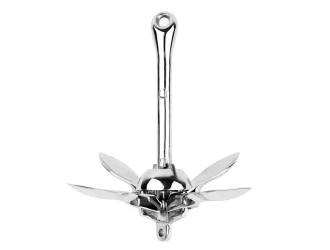

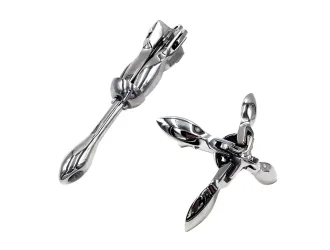

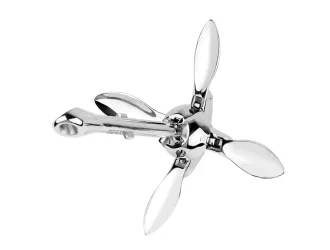

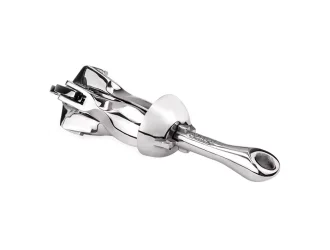

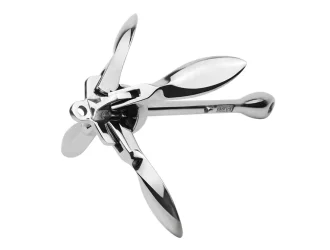

A 316 stainless steel folding grapnel anchor is a small, lightweight anchor, often used on small boats and watercraft like dinghies, kayaks, and fishing boats. It's made from high-quality 316 stainless steel, a type known for its durability and resistance to corrosion, especially in saltwater. The anchor's "grapnel" design means it has multiple arms or flukes that dig into the seabed, providing a strong hold. The folding feature allows for compact storage when not in use.
Drawings of 316 Stainless Steel Folding Grapnel Anchor:

Specification of 316 Stainless Steel Folding Grapnel Anchor:
Specification | A mm | B mm | C mm |
0.7KG | 200 | 90 | 47 |
1.5KG | 302 | 135 | 54 |
2.5KG | 355 | 156 | 59 |
3.2KG | 395 | 174 | 73 |
4KG | 460 | 200 | 76 |
5KG | 470 | 210 | 80 |
6KG | 523 | 222 | 85 |
7KG | 530 | 230 | 90 |
8KG | 600 | 240 | 90 |
10KG | 655 | 260 | 102 |
12KG | 840 | 326 | 102 |
