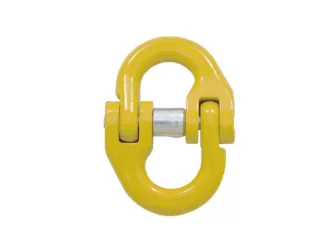

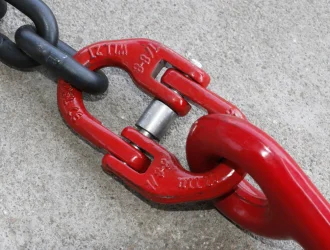

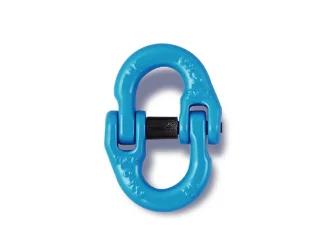

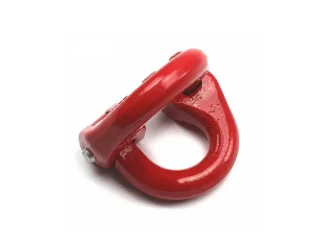

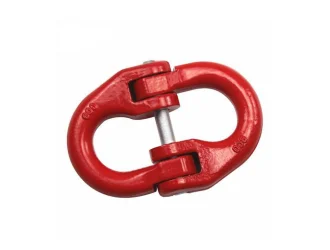

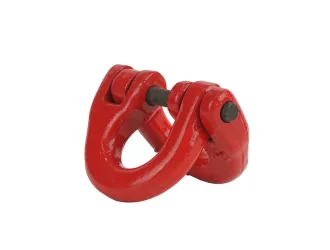

G80 Forged Steel Chain connecting Link Lifting Hammerlock
| Product Features: | |
| Application: | Lifting accessory commonly used in industrial |
| Material: | Superior slloy steel,At least 4 times |
| Process | Drop forging |
| Color: | Colorful paint,Red,Yellow,Blue etc. |
| Heat treatment: | Quenching and tempering |
| Standard: | EN 10204 3.1; Under request,CCS/ABS/DNV third party |
Description

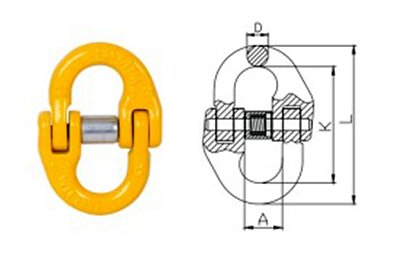

| Size | WLL | Weight (Kg) | Dimensions（mm） | Tolerance | |||
| - | (T) | - | A | B | D | K | - |
| 6mm-8 | 1.12 | 0.13 | 14.5 | 16 | 8 | 44 | ±5% |
| 8mm-8 | 2 | 0.15 | 18 | 21 | 9 | 55 | ±5% |
| 10mm-8 | 3.15 | 0.34 | 23.5 | 25 | 13 | 66 | ±5% |
| 13mm-8 | 5.3 | 0.75 | 28.5 | 35 | 16.5 | 87 | ±5% |
| 16mm-8 | 8 | 1.3 | 34 | 41.5 | 18 | 103 | ±5% |
| 20mm-8 | 12.5 | 2.26 | 47 | 50 | 24 | 122 | ±5% |
| 22mm-8 | 15 | 3.41 | 50 | 57 | 26.5 | 138.5 | ±5% |
| 26mm-8 | 21.2 | 5 | 58.5 | 62 | 31 | 152 | ±5% |
| 32mm-8 | 31.5 | 9.25 | 64.5 | 80 | 38 | 191 | ±5% |
| 36mm-8 | 40 | 13.61 | 96.3 | 99.5 | 38 | 236 | ±5% |
| 40mm-8 | 50 | 23.57 | 114 | 120.4 | 44 | 281.8 | ±5% |
