Three Hole Angle mooring Plate
| Product Features: | |
| Connection: | Chains by shackles |
| Material: | Carbon steel |
| Surface: | Black hot dip galvanizing |
| Customized: | Acceptable |
| Specification: | SWL25T-455T |

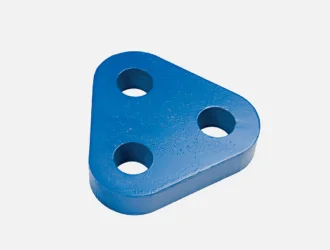

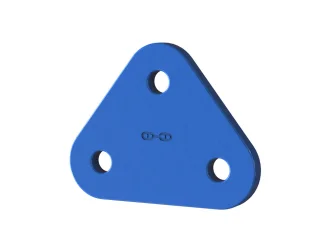

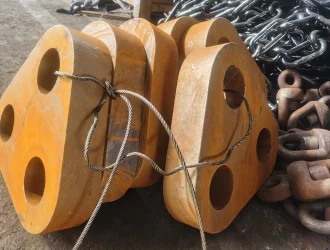

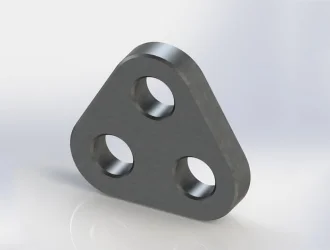

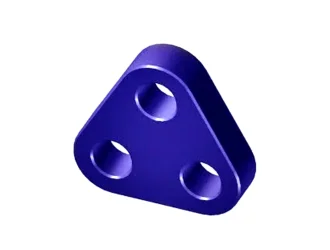

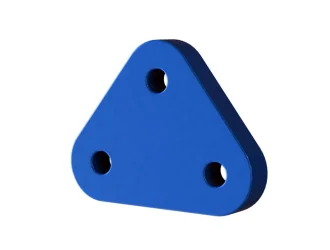

Three Hole Angle mooring Plate

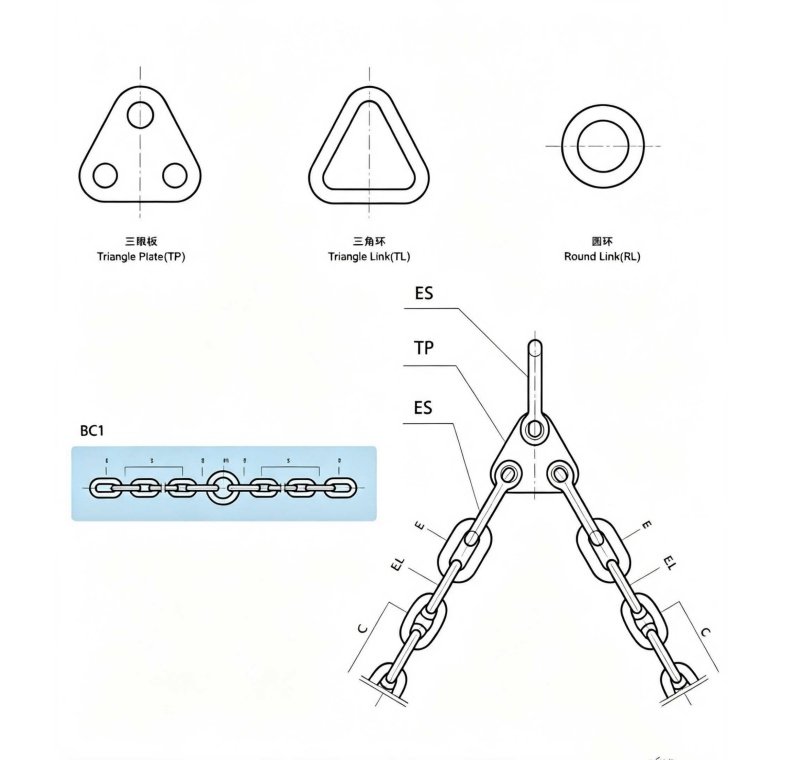

A "Three Hole Angle mooring plate" refers to a metal plate, often triangular in shape, used for securing mooring lines or cables in marine applications. These plates typically have three holes drilled or punched into them, facilitating the connection of the plate to the structure (like a boat deck) and to the mooring hardware (like a bridle or tow line).

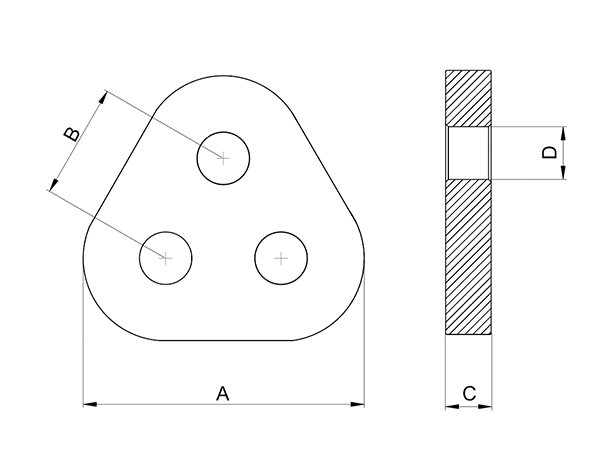

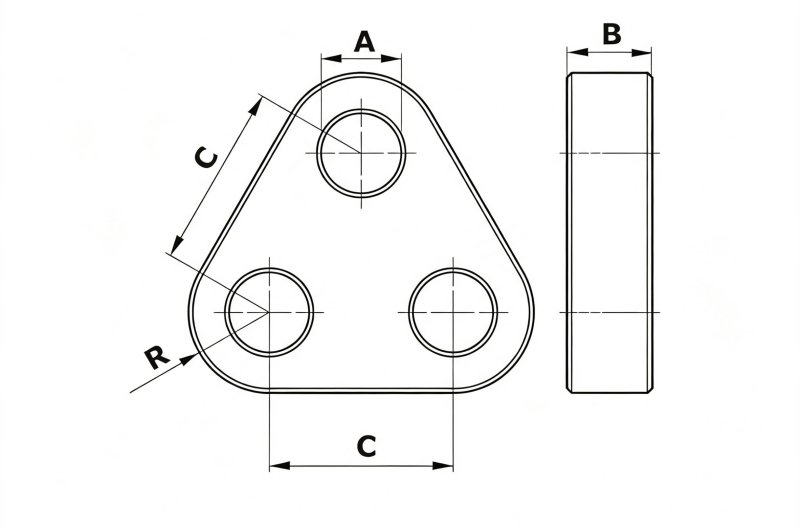

Drawings of Delta Plate Three Hole Trangle Plate:
Specification of Delta Plate Three Hole Trangle Plate:
| WILL(ton.) | MBL(ton.) | A(mm) | B(mm) | C(mm) | R(mm) | Weight(kg) |
| 17 | 85 | 47 | 35 | 120 | 65 | 10 |
| 25 | 125 | 55 | 40 | 150 | 80 | 15 |
| 35 | 175 | 60 | 50 | 160 | 90 | 19 |
| 55 | 275 | 75 | 70 | 210 | 105 | 38 |
| 85 | 425 | 90 | 80 | 230 | 135 | 62 |
| 120 | 600 | 105 | 100 | 280 | 170 | 95 |
| 150 | 750 | 115 | 110 | 320 | 185 | 133 |
