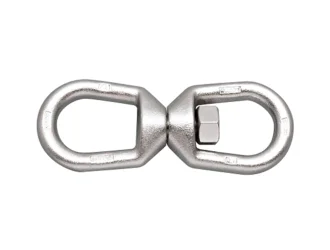

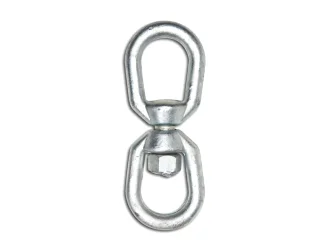

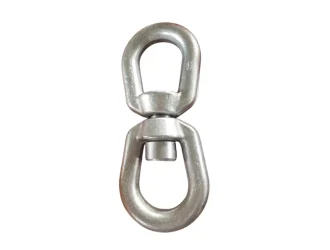

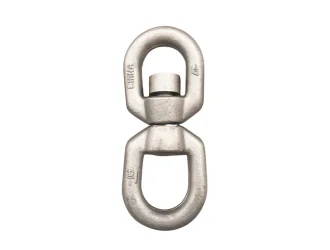

G402 Eye Swivel Forged Galvanized Lifting Accessory
| Product Features: | |
| Application: | It is used for lifting devices to ensure the safety of hoisting |
| Material: | Forged alloy steel |
| Specification: | 1/4”-1 1/2” |
| Surface: | Hot dip galvanizing |
| Packing: | Bulk,Ton bag or as customer request,Pallet |
| Standard: | DIN5688-A343，ISO9001 |
Description
| Nominal | Working load limit | Weight | Dimensions(mm) | |||||||
| (in) | (Ton) | (kg) | A | B | C | D | J | M | R | S |
| 1/4 | 0.39 | 0.1 | 31.75 | 17.53 | 19.05 | 26.92 | 17.53 | 7.87 | 74.68 | 42.93 |
| 5/16 | 0.57 | 0.18 | 41.402 | 20.57 | 25.40 | 31.75 | 20.57 | 9.65 | 90.42 | 52.32 |
| 3/8 | 1.02 | 0.32 | 50.8 | 23.88 | 31.75 | 38.10 | 25.40 | 12.70 | 109.47 | 63.50 |
| 1/2 | 1.63 | 0.6 | 63.5 | 33.78 | 38.10 | 50.88 | 33.27 | 9.65 | 138.18 | 81.03 |
| 5/8 | 2.36 | 1.13 | 76.2 | 39.62 | 44.45 | 60.45 | 38.10 | 19.05 | 166.62 | 98.55 |
| 3/4 | 3.27 | 1.82 | 88.9 | 45.47 | 50.80 | 66.80 | 47.75 | 22.35 | 182.63 | 109.47 |
| 7/8 | 4.54 | 2.83 | 101.6 | 52.32 | 57.15 | 77.72 | 54.10 | 25.40 | 212.85 | 127.00 |
| 1 | 5.67 | 4.06 | 114.3 | 58.67 | 63.50 | 88.90 | 60.45 | 28.70 | 244.60 | 146.05 |
| 1 1/4 | 8.16 | 7.43 | 143.002 | 68.33 | 79.50 | 93.73 | 76.20 | 38.10 | 290.58 | 171.45 |
| 1 1/2 | 20.5 | 20.77 | 180.086 | 98.55 | 103.89 | 98.55 | 95.25 | 57.15 | 423.93 | 251.71 |
