Fishing chains have three specifications: short link chian, middle link chain and long link chain. Different types of fishing chains have different features.
Fishing chains have three specifications: short link chian, middle link chain and long link chain. Different types of fishing chains have different features.
Stud link anchor chains are a type of heavy-duty chain commonly used for anchoring and mooring vessels. They have a central stud in each link that helps to prevent kinking, deformation, and fouling. These chains are known for their strength and are often preferred for large vessels and applications where significant loads are involved.
The dual shank anchor features two parallel shanks that work together to embed and hold in various seabed conditions. This design provides higher holding power than traditional anchors, especially in soft ground and mud, and is commonly used in aquaculture and swing moorings.
Mooring shackles are manufactured with alloy steel by following ISO9001 Quality Control System. With our years know-how on forging, heat treatment and hot dip galvanized, it is ensured the mooring shackle avoid any Hydrogen Embrittle-ment and offer a longer fatigue life of safe performance compared to EN13889 requirement and safety.
Mooring connection plates are manufactured using alloy grade material and followed by full heat treatment process.The durability ensures that the plates can withstand exposure to saltwater, reducing maintenance needs and extending the lifespan of the aquaculture setup.
Sinostar Marine is a manufacturer of AM2/AM3 stud link anchor chains.Can provide LR, DNV, CCS, ABS, BV and other classification society certification.
Stud link anchor chain AM2 is a specific type of anchor chain widely used in marine applications. It's characterized by having a stud (a crossbar or bar) within each link, adding strength and preventing kinking or twisting. AM2 is a designation within the marine industry for a specific grade of this chain, indicating its strength and material properties.
Anchor Chain for marine farm mooring system, with diameter 16mm to 50mm, most used in European fish farming industry.
An Anchor Shackle Type D End Shackle is a specific type of shackle used in marine applications, particularly for connecting anchor chains. It's a D-shaped fitting with a removable pin, designed to safely connect the anchor's standard shackle to the chain or to a rope with a thimble.
AC-14 anchor is a stockless HHP anchor with a wide anchor crown, thick and long flukes, and longitudinal ribs.
The AC-14 SB HHP Casting Anchor is a high-holding-power anchor, specifically designed for marine applications. It's a stockless anchor with a design that provides excellent weight-to-performance ratios and can be used in various seabed conditions.
A ship Spek anchor, also known as a stockless anchor, is a common type of anchor used in commercial shipping and cruise vessels. It is designed with a compact, stockless design for easy handling and deployment, especially in shallow waters, and is known for its good holding power.
| Product Features: | |
| Application: | Lashing Chain Tensioner, and Tension Levers |
| Material: | Alloy Steel,Carbon Steel |
| Specification: | 9MM/11MM/13MM |
| Feature: | High Holding Power Anchor |
| Color: | Colorful Paint |
| Packing: | Bulk, Ton Bag or as Customer Request |

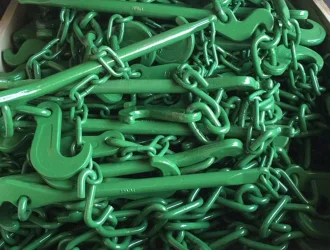

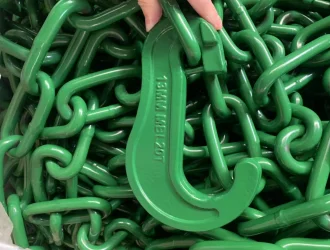

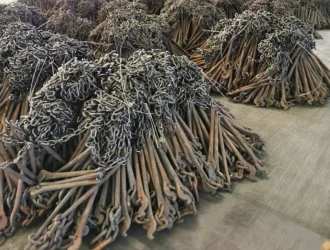

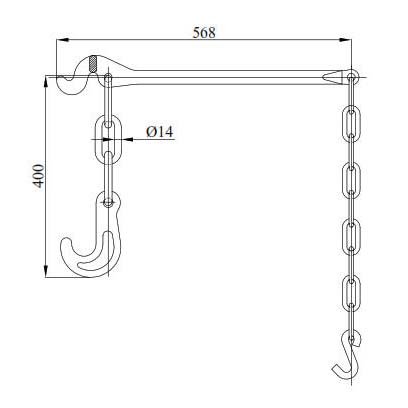

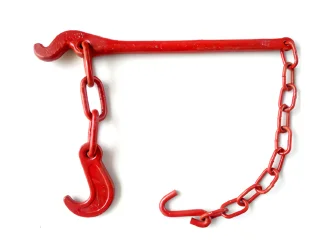

An 11mm lashing chain tensioner is a tool used to tighten and secure lashing chains when transporting cargo. It's specifically designed for use with 11mm diameter lashing chains, removing slack and achieving optimal tension for secure cargo transport. These tensioners are made from high-tensile steel and are designed to withstand high loads.
Securing cargo:Lashing chain tensioners ensure that cargo remains securely in place during transport, preventing shifting or damage.
Tension adjustment:They allow for precise control of the lashing chain tension, ensuring it's neither too loose nor too tight.
Easy operation:They are typically lever-operated, making it simple to tighten and adjust the lashing chain.
Durability:Made from high-tensile steel, they are robust and built to withstand the rigors of transportation.
Compatibility:Specifically designed for 11mm lashing chains, ensuring a proper fit and secure connection.
| Dimensions | 13MM | 11MM | 9MM |
| Material | Forge steel | Forge steel | Forge steel |
| Breaking load tension | 20Tons | 15Tons | 10Tons |
| Working load tension | 5Tons | 3.75Tons | 2.5Tons |
| Finish | Painted | Painted | Painted |
| Loose fixed | Loose container lashing material | Loose container lashing material | Loose container lashing material |
| Remarks | Customized colours | Customized colours | Customized colours |
| Weight | 5.7kg | 4.8kg | 3.8kg |
| Category | Lashing chain tensioner, and tension levers | Lashing chain tensioner, and tension levers | Lashing chain tensioner, and tension levers |
